Discover the advanced capacitive touchscreen technology with LED backlighting specifically designed for casino equipment and slot machines. This comprehensive guide covers the technical specifications, performance characteristics, durability requirements, and integration considerations for gaming displays used in casino environments. Learn about the unique features that make LED-backlit capacitive touchscreens ideal for slot machines, including high brightness, extended operational life, multi-touch capabilities, and compliance with gaming industry standards.
Capacitive touchscreens with LED backlighting have revolutionized the casino gaming industry, providing superior visual clarity, responsive touch interaction, and exceptional reliability for slot machines and gaming equipment. These advanced displays combine the precision of capacitive touch technology with the energy efficiency and brightness of LED backlighting, creating an optimal solution for casino environments that demand both performance and durability.
Casino slot machines require displays that can operate continuously in high-traffic environments, withstand extended use, and deliver vibrant graphics that attract and engage players. LED-backlit capacitive touchscreens meet these demanding requirements while offering enhanced user experience through intuitive touch controls and crystal-clear visual presentation.
Key Features of LED-Backlit Capacitive Touchscreens for Casino Equipment
LED-backlit capacitive touchscreens designed for casino slot machines incorporate specialized features to meet the unique demands of gaming environments:
High Brightness and Contrast
Casino environments often feature ambient lighting that can wash out displays. LED-backlit capacitive touchscreens address this challenge:
- High Brightness Levels: Typically 500-1000 nits or higher to ensure visibility in brightly lit casino floors
- Superior Contrast Ratios: 1000:1 or better for crisp, clear graphics and text
- Wide Viewing Angles: 170° or greater to maintain image quality from various player positions
- Adaptive Brightness: Automatic adjustment capabilities to optimize visibility and power consumption
Durability and Reliability
Casino equipment must withstand continuous operation and heavy use:
- 24/7 Operation: Designed for continuous operation without degradation in performance
- Scratch-Resistant Glass: Hardened glass surfaces (typically 7H or higher) to resist damage from frequent touch interactions
- Extended Lifespan: LED backlights rated for 50,000+ hours of operation
- Temperature Stability: Operating range typically -10°C to 60°C for various casino environments
- Vibration Resistance: Built to withstand mechanical vibrations from nearby equipment and player interactions
Technical Specifications for Casino Slot Machine Displays
LED-backlit capacitive touchscreens for casino equipment are engineered with specific technical requirements:
Display Specifications
- Screen Sizes: Common sizes include 19", 22", 24", 27", and 32" to accommodate various slot machine designs
- Resolutions: Full HD (1920×1080), 2K (2560×1440), or 4K (3840×2160) depending on application requirements
- Aspect Ratios: Primarily 16:9 widescreen format, with 16:10 and custom ratios available
- Color Depth: 8-bit or 10-bit color for rich, vibrant graphics essential for gaming content
- Response Time: <5ms for fast-moving graphics and animations
Touch Technology Specifications
- Touch Points: 10-point or 20-point multi-touch capability for complex gaming interactions
- Touch Accuracy: ±1mm or better for precise control
- Response Time: <10ms touch response for immediate feedback
- Touch Sensitivity: Configurable sensitivity levels to accommodate various user interaction styles
- Glove Support: Enhanced sensitivity modes for operation with gloves when required
LED Backlighting Technology
LED backlighting provides significant advantages over traditional CCFL (Cold Cathode Fluorescent Lamp) technology for casino applications:
Advantages of LED Backlighting
- Energy Efficiency: LED backlights consume 30-50% less power than CCFL alternatives, reducing operational costs
- Longer Lifespan: 50,000-100,000 hours of operation compared to 20,000-30,000 hours for CCFL
- Instant On: Immediate full brightness without warm-up time
- Better Color Accuracy: Wider color gamut and more consistent color reproduction
- Dimming Capabilities: Precise brightness control for power management and ambient light adaptation
- Mercury-Free: Environmentally friendly technology without hazardous materials
- Uniform Illumination: Consistent brightness across the entire display surface
LED Backlight Configurations
- Edge-Lit LED: LEDs positioned along display edges for thinner form factors
- Direct-Lit LED: LEDs distributed across the back panel for superior brightness uniformity
- Local Dimming: Advanced technology allowing independent control of LED zones for enhanced contrast
- RGB LED: Color-tunable backlighting for specialized color requirements
Gaming Industry Requirements and Compliance
Casino equipment displays must meet specific industry standards and regulatory requirements:
Regulatory Compliance
- Gaming Standards: Compliance with GLI (Gaming Laboratories International) standards where applicable
- EMC/EMI Standards: Meeting electromagnetic compatibility requirements to avoid interference with gaming systems
- Safety Certifications: UL, CE, FCC, and other regional safety certifications
- Environmental Standards: RoHS compliance for restricted substance management
Performance Requirements
- Reliability Standards: MTBF (Mean Time Between Failures) of 50,000+ hours
- Image Quality: Consistent color accuracy and brightness over extended periods
- Touch Reliability: 99.9%+ touch recognition accuracy under normal operating conditions
- System Integration: Compatibility with common gaming system interfaces and protocols
Integration with Slot Machine Systems
LED-backlit capacitive touchscreens must seamlessly integrate with slot machine hardware and software:
Interface Compatibility
- Video Interfaces: Support for HDMI, DisplayPort, DVI, and VGA connections
- Touch Interfaces: USB HID (Human Interface Device) for plug-and-play compatibility
- Control Interfaces: RS-232, I2C, or SPI for advanced control and configuration
- Power Requirements: Standard 12V or 24V DC power inputs compatible with gaming machine power supplies
Software Integration
- Driver Support: Windows, Linux, and embedded OS compatibility
- Multi-Touch APIs: Support for standard touch input frameworks (Windows Touch, TUIO, etc.)
- Calibration Tools: Software utilities for touch calibration and configuration
- Diagnostic Capabilities: Built-in diagnostics for troubleshooting and maintenance
Performance Characteristics Comparison
LED-backlit capacitive touchscreens offer superior performance for casino applications:
| Feature | LED-Backlit Capacitive | CCFL-Backlit Capacitive | Resistive Touch |
|---|---|---|---|
| Brightness | 500-1000+ nits |
300-500 nits |
300-500 nits |
| Power Consumption | 30-50% less |
Standard |
Standard |
| Lifespan | 50,000-100,000 hrs |
20,000-30,000 hrs |
20,000-30,000 hrs |
| Multi-Touch | 10-20 points |
10-20 points |
Single point |
| Touch Sensitivity | High precision |
High precision |
Requires pressure |
| Durability | Hardened glass |
Hardened glass |
Polyester film |
Size Recommendations for Slot Machine Applications
Selecting the appropriate screen size depends on the specific slot machine design and player interaction requirements:
Standard Slot Machine Sizes
- 19" to 22": Compact slot machines and space-constrained installations
- 24" to 27": Standard slot machines offering optimal balance of size and visibility

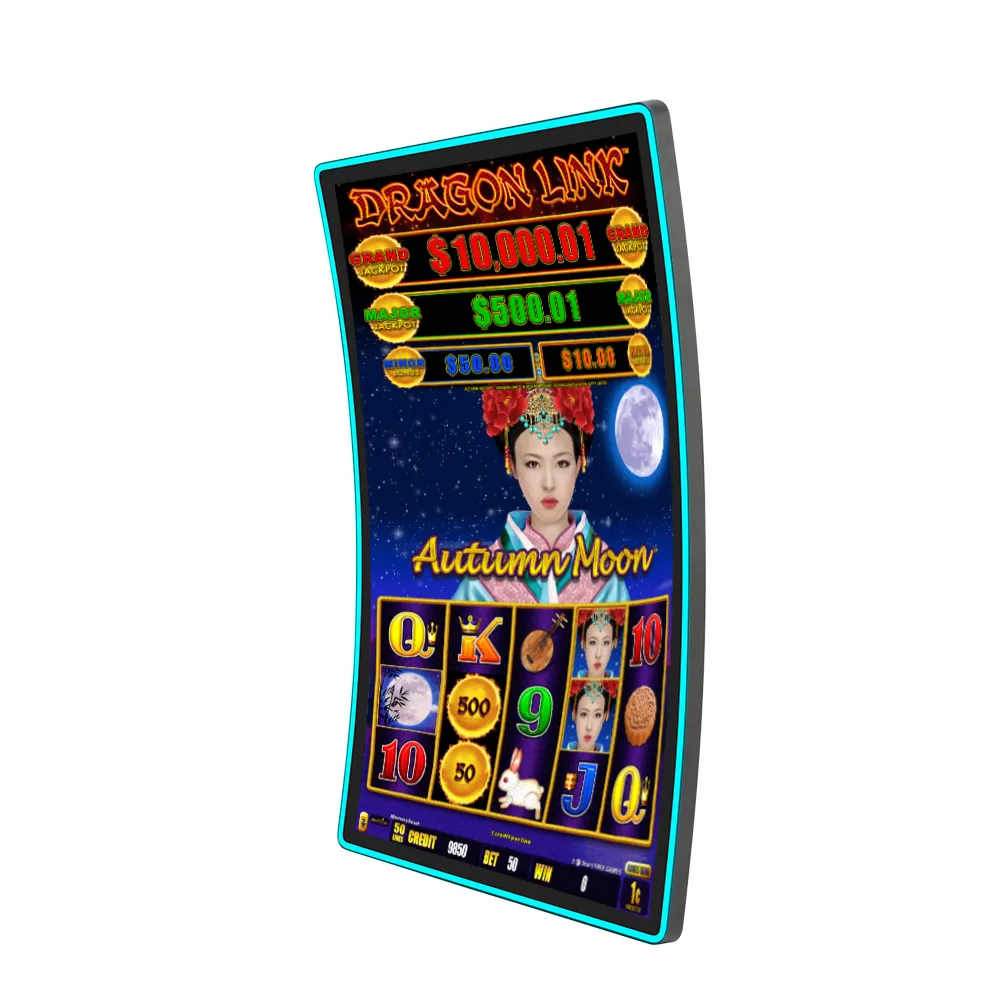

- 32" to 43": Large-format slot machines for enhanced player experience and premium gaming
- Custom Sizes: Specialized dimensions for unique slot machine designs and configurations
Size Selection Factors
- Player Viewing Distance: Typically 18-36 inches, requiring appropriate screen size for comfortable viewing
- Cabinet Design: Screen size must integrate with slot machine cabinet dimensions and aesthetics
- Content Requirements: Game graphics and information display needs determine minimum size
- Multi-Screen Configurations: Some slot machines use multiple displays requiring coordinated sizing
Environmental Considerations
Casino environments present unique challenges that LED-backlit capacitive touchscreens must address:
Operating Conditions
- Temperature Range: -10°C to 60°C operating temperature for various casino climates
- Humidity: 10-90% relative humidity (non-condensing) for reliable operation
- Ambient Light: High ambient light levels requiring bright displays with anti-glare coatings
- Dust and Contaminants: Sealed designs to prevent dust ingress affecting touch performance
Protection Features
- Anti-Glare Coating: Reduces reflections and improves visibility in bright environments
- Anti-Fingerprint Coating: Oleophobic coatings to minimize fingerprint visibility and ease cleaning
- Sealed Construction: IP54 or higher rating for protection against dust and moisture
- EMI Shielding: Protection against electromagnetic interference in crowded casino environments
Maintenance and Serviceability
LED-backlit capacitive touchscreens for casino equipment are designed for easy maintenance and service:
Maintenance Features
- Easy Cleaning: Smooth glass surfaces that can be cleaned with standard casino cleaning solutions
- Modular Design: Components can be replaced individually to minimize downtime
- Diagnostic Tools: Built-in self-diagnostics for quick troubleshooting
- Long Service Intervals: Extended maintenance-free operation reduces service frequency
Service Considerations
- Field Replaceable: Displays designed for on-site replacement when necessary
- Standard Interfaces: Common connectors and mounting systems for simplified service
- Technical Support: Manufacturer support for integration and troubleshooting
- Warranty Coverage: Comprehensive warranty programs for peace of mind
Cost Considerations
While LED-backlit capacitive touchscreens represent a premium solution, they offer excellent value for casino applications:
- Initial Investment: Higher upfront cost compared to basic displays, but justified by performance and reliability
- Operational Savings: Lower power consumption reduces electricity costs over the display lifetime
- Reduced Maintenance: Longer lifespan and reliability minimize service and replacement costs
- Player Experience: Enhanced visual quality and touch responsiveness can increase player engagement and revenue
- Total Cost of Ownership: Lower TCO over 5-7 year operational period compared to alternatives
Future Trends in Casino Display Technology
The casino gaming industry continues to evolve with new display technologies and features:
- Higher Resolutions: Increasing adoption of 4K and 8K displays for ultra-sharp graphics
- Curved Displays: Curved LED-backlit touchscreens for immersive gaming experiences
- HDR (High Dynamic Range): Enhanced contrast and color for more vibrant game graphics
- Advanced Touch Technologies: Improved multi-touch capabilities and gesture recognition
- Integration with AR/VR: Displays supporting augmented and virtual reality gaming experiences
- Smart Display Features: Integrated sensors and adaptive technologies for enhanced user interaction
- Sustainability Focus: Further improvements in energy efficiency and recyclable materials
These technological advancements are shaping the future of casino gaming displays, offering enhanced player experiences while maintaining the reliability and performance standards required for casino operations.
Conclusion
LED-backlit capacitive touchscreens represent the optimal display solution for casino slot machines and gaming equipment. Combining the precision and responsiveness of capacitive touch technology with the energy efficiency and brightness of LED backlighting, these displays deliver exceptional performance in demanding casino environments.
The key advantages of LED-backlit capacitive touchscreens for casino applications include superior brightness for visibility in bright casino floors, extended operational lifespan for 24/7 operation, excellent multi-touch capabilities for interactive gaming, and compliance with gaming industry standards and regulations. When selecting displays for casino equipment, consider factors such as screen size, resolution, touch capabilities, environmental protection, and integration requirements to ensure optimal performance and player satisfaction.
As casino gaming technology continues to evolve, LED-backlit capacitive touchscreens will remain at the forefront, providing the visual clarity, touch responsiveness, and reliability essential for modern slot machines and gaming equipment. Investing in high-quality displays not only enhances player experience but also contributes to operational efficiency and long-term cost savings.
